Pohony pro eBike
15.07.2019 14:57
Parametry čínských komponent pro stavbu elektrokol se velice špatně dohledávají. Dokonce i tak proslulé značky, jako je Bafang (8fun) jsou na informace velmi skoupé, a na svých stránkách mají minimum informací. Něco málo se dá "vygůglit", ale velká sláva to taky není. V tomto článku chci zaznamenat informace o nábojových motorech, které se mi dohledat podařilo.
Rozměrový náčrt předního motoru 8fun SWXK5 36V 250W

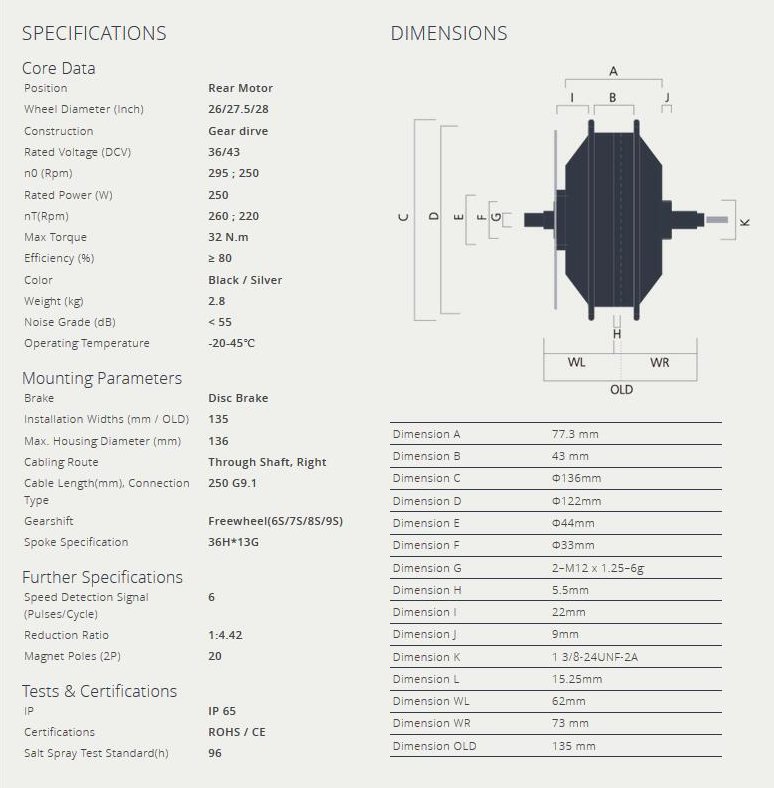

Parametry zadního motoru 8fun BFSFX02 36V 250W

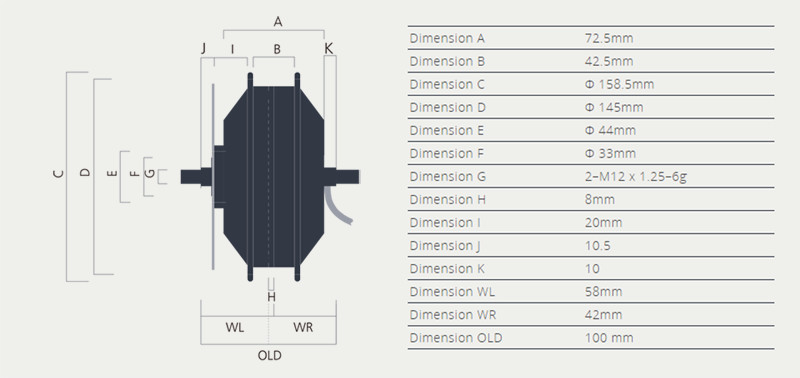

Parametry předního motoru 8fun BFSFX02 36V 350W
| Core Data | |
| Position | Front Motor |
| Wheel Diameter (Inch) | 20/26/27.5/28 |
| Construction | Gear drive |
| Rated Voltage (DCV) | 36/43/48 |
| n0 (Rpm) | 36V 350W:312 ; 48V 350W:352; |
| Rated Power (W) | 350 |
| nT(Rpm) | 290 ; 205 |
| Max Torque | 45 N.m |
| Efficiency (%) | ≥ 80 |
| Color | Black |
| Weight (kg) | 3.3 |
| Noise Grade (dB) | ＜55 |
| Operating Temperature | -20 - 45℃ |
| Mounting Parameters | |
| Brake | Disc Brake |
| Installation Widths (mm / OLD) | 100 |
| Max. Housing Diameter (mm) | 158.5 |
| Cabling Route | Shaft Dide, Right |
| Cable Length(mm), Connection Type | 250 G9.1 |
| Spoke Specification | 36H*13G |
| Further Specifications | |
| Speed Detection Signal (Pulses/Cycle) | 6 |
| Reduction Ratio | 1:5 |
| Magnet Poles (2P) | 20 |
| Tests & Certifications | |
| IP | IP 65 |
| Certifications | ROHS / CE |
| Salt Spary Test Standard(h) | 96 |
Parametry zadního motoru 8fun BFSFX02 36V 350W
| Core Data | |
| Position | Rear Motor |
| Wheel Diameter (Inch) | 26/27.5/28 |
| Construction | Gear drive |
| Rated Voltage (DCV) | 36/43/48 |
| n0 (Rpm) | 325 ; 245 |
| Rated Power (W) | 350 |
| nT(Rpm) | 290 ; 205 |
| Max Torque | 45 N.m |
| Efficiency (%) | ≥ 80 |
| Color | Black |
| Weight (kg) | 3.3 |
| Noise Grade (dB) | ＜55 |
| Operating Temperature | -20 - 45℃ |
| Mounting Parameters | |
| Brake | Disc Brake |
| Installation Widths (mm / OLD) | 138 |
| Max. Housing Diameter (mm) | 158.5 |
| Cabling Route | Through Shaft, Right |
| Cable Length(mm), Connection Type | 250 G9.1 |
| Gearshift | Freewheel(6S/7S/8S/9S) |
| Spoke Specification | 36H*12G |
| Further Specifications | |
| Speed Detection Signal (Pulses/Cycle) | 6 |
| Reduction Ratio | 1:05 |
| Magnet Poles (2P) | 20 |
| Tests & Certifications | |
| IP | IP 65 |
| Certifications | ROHS / CE |
| Salt Spary Test Standard(h) | 96 |
