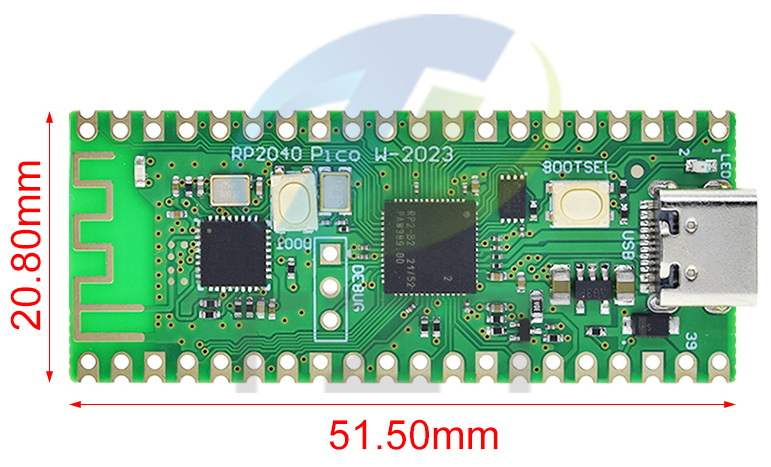

Raspbery Pi Pico W 2023

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

// Test komunikace RP2040 s WiFi modulem ESP8285
// Návrh pro klon Raspbery Pico W 2023
// ========================================================


void setup() {
  Serial.begin(9600);       // UART pro komunikaci USB
  Serial1.begin(115200);    // UART pro komunikaci s ESP8285 (WiFi modem)
  delay(3000);
  Serial.println("Inicializace spojení...");
}

void loop() {
  if(Serial.available()>0) {
    char c = Serial.read();
    Serial1.print(c);
  }
  if(Serial1.available()>0) {
    char c = Serial1.read();
    Serial.print(c);
  }

}

/*
---------------------------------------------------------------
Pár příkladů zadaných příkazů v sériovém monitoru vč. odpovědí
---------------------------------------------------------------
AT+GMR
AT version:1.6.2.0(Apr 13 2018 11:10:59)
SDK version:2.2.1(6ab97e9)
compile time:Sep 10 2019 17:31:08
OK

(pozn: před připojením k WiFi je třeba nejdřív nastavit mód modemu)
AT+CWMODE_CUR=3
OK

AT+CWJAP_CUR="moje_ssid","moje_pwd"
WIFI CONNECTED
WIFI GOT IP
OK

AT+CIFSR
+CIFSR:APIP,"192.168.4.1"
+CIFSR:APMAC,"c6:4f:33:df:16:7b"
+CIFSR:STAIP,"192.168.0.47"
+CIFSR:STAMAC,"c4:4f:33:df:16:7b"
OK

AT+UART?
+UART:115273,8,1,0,1
OK
*/

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141

/*
 Výchozí kód:
 WiFiEsp example: WebServer
 Upraveno pro RP2040 Pico W-2023

 A simple web server that shows the value of the analog input
 pins via a web page using an ESP8266 module.
 This sketch will print the IP address of your ESP8266 module (once connected)
 to the Serial monitor. From there, you can open that address in a web browser
 to display the web page.
 The web page will be automatically refreshed each 20 seconds.

 For more details see: https://yaab-arduino.blogspot.com/p/wifiesp.html
*/

#include "WiFiEsp.h"

char ssid[] = "xxx";            // your network SSID (name)
char pass[] = "xxxx";        // your network password
int status = WL_IDLE_STATUS;     // the Wifi radio's status
int reqCount = 0;                // number of requests received

WiFiEspServer server(80);

void setup()
{
  // initialize serial for debugging
  Serial.begin(115200);
  // initialize serial for ESP module
  Serial1.begin(115200);
  // initialize ESP module
  WiFi.init(&Serial1);

  // check for the presence of the shield
  if (WiFi.status() == WL_NO_SHIELD) {
    Serial.println("WiFi shield not present");
    // don't continue
    while (true);
  }

  // attempt to connect to WiFi network
  while ( status != WL_CONNECTED) {
    Serial.print("Attempting to connect to WPA SSID: ");
    Serial.println(ssid);
    // Connect to WPA/WPA2 network
    status = WiFi.begin(ssid, pass);
  }

  Serial.println("You're connected to the network");
  //delay(3000);
  printWifiStatus();

  // start the web server on port 80
  server.begin();
}


void loop()
{
  // listen for incoming clients
  WiFiEspClient client = server.available();
  if (client) {
    Serial.println("New client");
    // an http request ends with a blank line
    boolean currentLineIsBlank = true;
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        Serial.write(c);
        // if you've gotten to the end of the line (received a newline
        // character) and the line is blank, the http request has ended,
        // so you can send a reply
        if (c == '\n' && currentLineIsBlank) {
          Serial.println("Sending response");

          // send a standard http response header
          // use \r\n instead of many println statements to speedup data send
          client.print(
            "HTTP/1.1 200 OK\r\n"
            "Content-Type: text/html\r\n"
            "Connection: close\r\n"  // the connection will be closed after completion of the response
            "Refresh: 20\r\n"        // refresh the page automatically every 20 sec
            "\r\n");
          client.print("<!DOCTYPE HTML>\r\n");
          client.print("<html>\r\n");
          client.print("<h1>Hello World!</h1>\r\n");
          client.print("Requests received: ");
          client.print(++reqCount);
          client.print("<br>\r\n");
          // output the value of analog input pins
          for (int analogChannel = 0; analogChannel < 4; analogChannel++) {
            int sensorReading = analogRead(analogChannel);
            client.print("analog input ");
            client.print(analogChannel);
            client.print(" is ");
            client.print(sensorReading);
            client.println("<br />");
          }
          client.print("Teplota MCU: ");
          client.print(analogReadTemp());
          client.print("°C<br>\r\n");
          client.print("</html>\r\n");
          break;
        }
        if (c == '\n') {
          // you're starting a new line
          currentLineIsBlank = true;
        }
        else if (c != '\r') {
          // you've gotten a character on the current line
          currentLineIsBlank = false;
        }
      }
    }
    // give the web browser time to receive the data
    delay(10);

    // close the connection:
    client.stop();
    Serial.println("Client disconnected");
  }
}


void printWifiStatus()
{
  // print the SSID of the network you're attached to
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());

  // print your WiFi shield's IP address
//  IPAddress ip = WiFi.localIP();  Příkaz nefunguje, pokud je ponechán, program se zde kousne
  Serial.print("IP Address: ");
  Serial.println("ip"); // proměnná vložena do uvozovek

  // print where to go in the browser
  Serial.println();
  Serial.print("To see this page in action, open a browser to https://");
  Serial.println("ip"); // proměnná vložena do uvozovek
  Serial.println();
}
